Chevrolet S-10 Extended 2002 Fuse Box/Block Circuit Breaker Diagram
| No Fuse | Fuse/Circuit Breaker | Rating | Description | ||
|---|---|---|---|---|---|
| 1 | - | - | Not Used | ||
| 2 | CIGAR LTR | 15A | Cigar Lighter and Data Link Connector (DLC) | ||
| 3 | CRUISE | 10A | Body Control Module (BCM),Cruise Control Module(CCM), Multifunction Switch(Cruise Control Switch), and Seat Lumbar Switch-Driver/Front Passenger | ||
| 4 | GAUGES | 10A | Body Control Module (BCM), and Instrument Panel Cluster (IPC) | ||
| 5 | PARK LP | 10A | Body Control Module (BCM), Outside Rear View Mirror Switch, Door Lock and Side Window Switch- Driver/Front Passenger, Side Window Lockout Swwitch, and Rear Seat Audio Control (Envoy Only), IP Ashtray Lamp (Except Envoy) | ||
| 6 | STR WHL ILLUM | 2A | Redundant Steering Wheel Controls (Utility Only) | ||
| 7 | HDLP SW | 10A | Headlamp Switch | ||

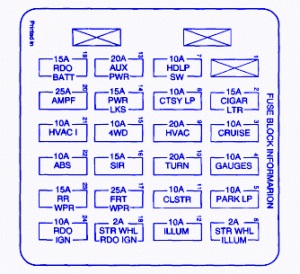

Chevrolet S-10 Extended 2002 Fuse Panel/Board – Fuse Symbol Map
