Chevrolet S-10 2000 Fuse Box/Block Circuit Breaker Diagram
| Fuse/ Circuit Breaker | Rating | Description | ||||
|---|---|---|---|---|---|---|
| Maxi Fuses | ||||||
| INT BATT | 50A | HDLP SW, AUX PWR, RDO BATT, CIGAR LTR, CTSY LP, and PWR LKS Fuses, and AMPF Fuse (W/Premium Audio) | ||||
| ABS | 60A | Electronic Brake Control Module (EBCM) | ||||
| IGN B | 50A | Ignition Switch | ||||
| RAP | 50A | Retained Accessory Power (RAP) Relay | ||||
| IGN A | 40A | Starter Relay and Ignition Switch | ||||
| STUD #2 | 30A | Not Used | ||||
| Mini Fuses | ||||||
| TRL TRN | 10A | Not Used | ||||
| LT TRN | 10A | Park and Turn Signal Lamp, LH Rear | ||||
| BTSI | 10A | TCC/Stop Lamp Switch, annd Transfer Case Shift Control Module(w/NP1) | ||||
| PARK LP | 20A | Park Lamp Relay, Headlamp Grounding Relay, and Headlamp Switch | ||||
| HVAC | 30A | Blower Motor Relay | ||||
| HAZ LP | 20A | Multifunction Switch (Hazard) | ||||
| TRR TRN | 10A | Not Used | ||||
| RT TRN | 10A | Park and Turn Signal Lamp, RH Rear | ||||

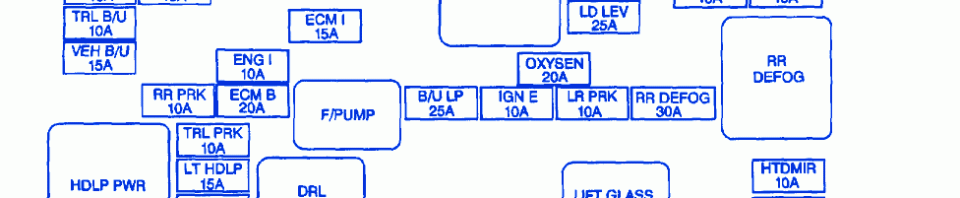

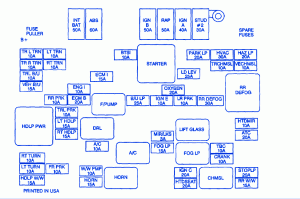

Chevrolet S-10 2000 Fuse Panel/Board – Fuse Symbol Map
