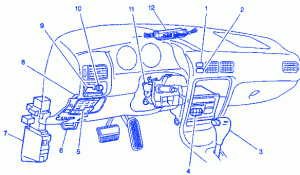

Chevrolet Prizm 1.8L I-4 2003 Dash Fuse Box/Block Circuit Breaker Diagram

Chevrolet Prizm 1.8L I-4 2003 Dash Fuse Box/Block Circuit Breaker Diagram

SymbolDescription
1Hazard Switch
2Rear Defogger Switch
4Radio
5Junction Block 2
6OBD II DLC
7Junction Block 1
8Multifunction Alarm Module
9Outside RearView Mirror Controller
10IP Lamp Dimmer
11Ignition Switch
12Junction Block 3

Chevrolet Prizm 1.8L I-4 2003 Dash Fuse Panel/Board – Fuse Symbol Map
