Chevrolet Lumina Junction 2001 Fuse Box/Block Circuit Breaker Diagram

Categories:

Chevrolet, Fuse Box Diagram

by Pad Rust

Chevrolet Lumina Junction 2001 Fuse Box/Block Circuit Breaker Diagram



Fuse MapAmps
R/CMPT REL15A
PCM BA20A
AIR PUMP10A
A/C CONT10A
TRANS10A
F/INJN15A
PCM IGN15A
ELEK IGN15A

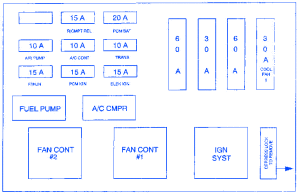

Chevrolet Lumina Junction 2001 Fuse Panel/Board – Fuse Symbol Map
