Chevrolet Kalos 2002 Engine Fuse Box/Block Circuit Breaker Diagram

Chevrolet Kalos 2002 Engine Fuse Box/Block Circuit Breaker Diagram



SymbolDescription
1Fuse Block
2A/C Compressor Relay
3A/C Condenser Fan Relay
4A/C Fuse
5Horn Relay
6Shift Lock Control Relay

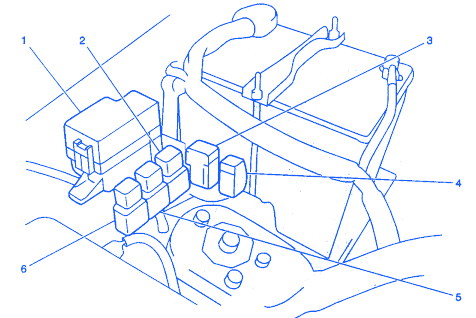

Chevrolet Kalos 2002 Engine Fuse Panel/Board – Fuse Symbol Map
