Chevrolet Express 2010 Floor Console Fuse Box/Block Circuit Breaker Diagram
| Mini-Fuse | Usage |
|---|---|
| F1 | Empty |
| F2 | Steering Wheel Sensor |
| F3 | Auxiliary Parking Lamps (Cut-away) |
| F4 | Front Park Lamps |
| F5 | trailer park Lamps |
| F6 | Upfitter Park Lamps |
| F7 | Right rear park Lamps |
| F8 | Left Rear Park Lamp |
| F9 | Outside Rear View Mirror Switch |
| F10 | Airbag/AOS |
| F11 | Empty |
| F12 | Empty |
| F13 | HVAC 2 |
| F14 | HVAC 1 |
| F15 | Empty |
| F16 | Upfitter Auxiliary 1 |
| F17 | Outside Rearview Mirror Heater |
| F18 | Rear Window Defogger |
| F19 | Compass |
| F20 | Radio/Chime |
| F21 | Remote Function Actuator/Tire Pressure Monitor |
| F22 | Ignition Switch/Discrete Logic Ignition Sensor (PK3) |
| F23 | Instrument Panel Cluster |
| F24 | Empty |
| F25 | HVAC Control |
| F26 | Auxiliary/Trailer Backup |
| F27 | tail Lamps Backup |
| F28 | Upfitter Auxiliary 2 reading Lamps |
| F29 | Rear Blower |
| F30 | Upfitter Courtesy Lamps |
| F31 | Front Door Lock |
| F32 | Rear Door Lock |
| F33 | Cargo Door Unlock |
| F34 | Passenger Door Unlock |
| F35 | Rear Passenger Door Unlock |
| F36 | Driver Door Unlock |
| F37 | Empty |
| F38 | Empty |

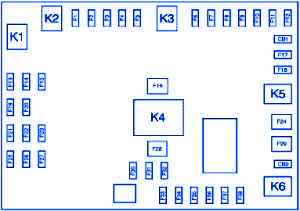

Chevrolet Express 2010 Floor Console Fuse Panel/Board – Fuse Symbol Map
