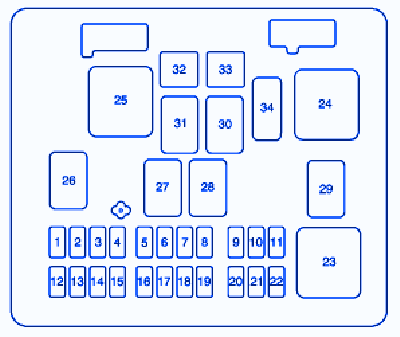

Chevrolet Express 1500 2012 Mini Fuse Box/Block Circuit Breaker Diagram
| FUSE/RELAY SYMBOL | FUSE/RELAY MAP | AMPS |
|---|---|---|
| MINI FUSE | ||
| 1 | SPARE | |
| 2 | OSRVM | 10A |
| 3 | CSTY LP/SEO | 15A |
| 4 | LR STOP/TRN | 10A |
| 5 | CARGO LKS | 10A |
| 6 | RR STOP/TRN | 10A |
| 7 | DRV LKS | 10A |
| 8 | STOP/CHMSL | 10A |
| 9 | HVAC 1 | 10A |
| 10 | HVAC | 20A |
| 11 | BRKS | 10A |
| 12 | HTD MIR/DEFOG | 30A |
| 13 | RR BLOWER | 30A |
| 14 | DR TRN MIR | 10A |
| 15 | DOOR LKS | 20A |
| 16 | UPFTR PRK | 10A |
| 17 | NOT AVAILABLE | |
| 18 | LR PRK | 10A |
| 19 | PASS TRN MIR | 10A |
| 20 | RR PRK | 10A |
| 21 | TRLR PRK | 15A |
| 22 | FR PRK | 10A |
| MICRO RELAY | ||
| 26 | CTSY | |
| 27 | CARGO UNLK | |
| 28 | DRV UNLK | |
| 29 | PARK LP | |
| 30 | DOOR LKS | |
| 31 | PASS UNLK | |
| MINI RELAY | ||
| 23 | WND RAP | |
| 25 | RR DEFOG | |
| J-CASE FUSE | ||
| 32 | AUXILIARY 1 | 50A or 20A |
| 33 | AUXILIARY 2 | 50A or 20A |
Chevrolet Express 1500 2012 Mini Fuse Panel/Board – Fuse Symbol Map
