Chevrolet Equinox 2010 Fuse Box/Block Circuit Breaker Diagram

Chevrolet Equinox 2010 Fuse Box/Block Circuit Breaker Diagram



J-Case FusesUsage
1Cool Fan 1
2Cool Fan 2
3Rear Defog
4Power Windows Right
5Memory Seat Module
6Power Seat Left
7Instrument Panel Fuse Block 1
8Instrument Panel Fuse Block 2
9Starter
10Brake Booster
11Sunroof
12Antilock Brake System Pump
13Instrument Panel Fuse Block 3
14Power Windows Left
15Antilock Brake System Module

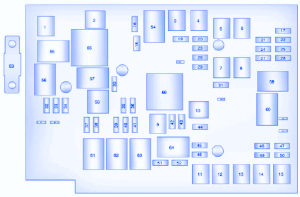

Chevrolet Equinox 2010 Fuse Panel/Board – Fuse Symbol Map
