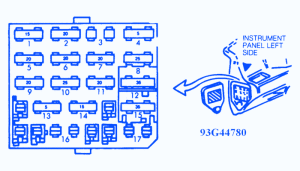

Chevrolet Corsica 1995 Left Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Amps | Fuse Map |
|---|---|---|
| 1 | 15A | Computer Command Control, Fuel Injector (1987-89 & 1991-93) |
| 2 | - | (1987-88) |
| 20A | (1989-91-95) Stoplights, Hazard Lights | |
| 3 | 15A | (1987-88) Radio |
| - | (1989-90) | |
| 10A | (1991-95) SIR (Air Bag), Ignition | |
| 4 | 20A | (1987-88) Stoplights, Hazard Lights |
| 5A | (1989-92) | |
| 10A | (1993-95) Alternator, Anti-Lock Brake (1992-95), LGO Heater Pipe (1992-94), D.R.L(1995) | |
| 5 | 20A | Back-Up Lights, Turn Signal Lights |
| 6 | - | (1987-88) |
| 20A | (1989-95) Trunk Release, Cigarette Lighter (1989-90 Corsica Only) 1991-95 Corsica & Beretta) | |
| 7 | 20A | Parking & Side Marker Lights, License Lights |
| 8 | 25A | Heater & Air Conditioner |
| 9 | 20A | Gauges/Warning Indicator, Audible Warning System, Rear Window Defogger, Air Conditioner, Computer Command Control(1987-90) Cruise Control(1995), D.R.L(1995) |
| 10 | 25A | Windshield Wiper/Washer |
| 11 | 20A | (1987-93) |
| 15A | (1994-95) Courtesy Lights, Clock, Door Locks (1987-93), Horn (1987-93), Cigar Lighter (1987-90)(1989 Beretta), Radio-CD(1991-95), Trunk Release (1987-88), Audible Warning System, ABS Pasive Belts | |
| 12 | 35A | (1987-91) Circuit Breaker |
| 30A | (1992-95) Circuit Breaker Power Windows | |
| 13 | 5A | (1987-91) |
| 3A | (1992-95) Instrument Panel Lights, Headlight Reminder (1987-90) | |
| 14 | 15A | Radio, Cruise Control, Clock (1987-88) |
| 15 | 35A | (1987-91) Circuit Breaker |
| 30A | (1992-95) Circuit Breaker, Power Door Locks, Rear window Defogger | |
| 16 | - | (1987-88 & 1990) |
| 10A | (1989) MAF Sensor (V6) | |
| 5A | (19910) | |
| 3A | (1992-93) DRL | |
| 20A | (1994-95) Fuel Pump/Injectors | |
| 17 | - | (1987-90) |
| 3A | (1991-93) SIR | |
| 10A | (1994-95) Automatic Door Unlock(Remove to Disable) |
Chevrolet Corsica 1995 Left Fuse Panel/Board – Fuse Symbol Map
