Chevrolet Blazer 1997 Instrument Panel Fuse Box/Block Circuit Breaker Diagram

Chevrolet Blazer 1997 Instrument Panel Fuse Box/Block Circuit Breaker Diagram



No.Fuse MapAmps
1--
2CIGAR LTR15A
3CRUISE10A
4GAUGES10A
5PARK LP10A
6STR WHL ILLUM2A
7HDLP SW10A
8CTSY LP10A
9HVAC20A
10TURN20A
11CLSTR10A
12ILLUM10A
13AUX PWR20A
14PWR LKS15A
154WD10A
16SIR15A
17FRT WPR25A
18STR WHL RDO IGN2A
19RDO BATT15A
20AMPF25A
21HVAC 110A
22ABS10A
23RR WPR15A
24RDO IGN10A

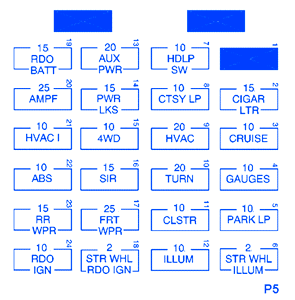

Chevrolet Blazer 1997 Instrument Panel Fuse Panel/Board – Fuse Symbol Map
