| No. | A | Component |
|---|---|---|
| 1 | 5A | EMS Wake-Up |
| 2 | 7,5A | EMS Ignition Supplies (non-critical) |
| 3 | 10A | Brake / Reverse Lamps |
| 4 | 7,5A | Ignition Services |
| 5 | 7,5A | Heater |
| 6 | 10A | Demist |
| 7 | 10A | Washers & Wipers |
| 8 | 10A | Power socket |
| 9 | 7,5A | Horns |
| 10 | 15A | Headlamps |
| 11 | 15A | Headlamp Flash |
| 12 | 15A | EMS Ignition Supplies (critical) |
| 13 | 10A | Flasher Unit |
| 14 | 5A | Diagnostic Connector |
| 15 | 7,5A | Side Lamps & Rear Fog Light |
| 16 | 7,5A | Immobiliser |
| 17 | 10A | EMS ECU Power |
| 18 | — | Spare |
| 19 | 15A | Fuel Pump |
| 20 | 15A | Cooling Fan |

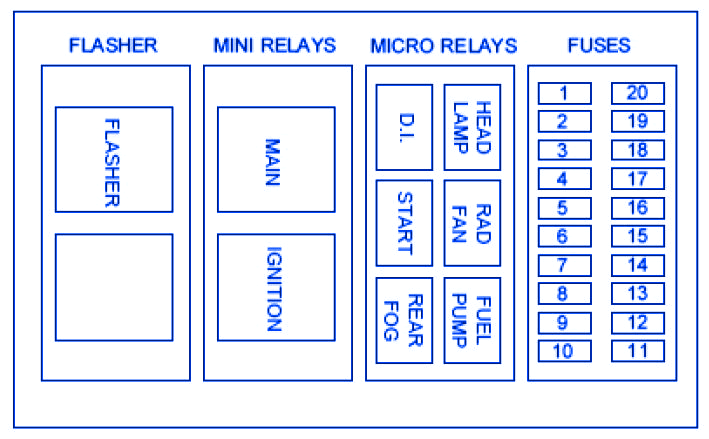

Caterham Seven Fuse Panel / Board – Fuse Symbol Map
