Cadillac ETC 1992 Main Fuse Box/Block Circuit Breaker Diagram
| Fuse/Relay Symbol | Amps | Fuse/Relay Map |
|---|---|---|
| Fuse | ||
| 1 | 50A | |
| 2 | 60A | |
| 3 | 30A C.B | |
| 4 | 30A | |
| 5 | 60A | |
| 6 | 60A | |
| 6 | 50A | |
| 5 | 50A | |
| 4 | 40A | |
| 3 | 50A | |
| 2 | 30A | |
| 1 | 30A C.B | |
| Relay | ||
| A | FUEL | |
| B | HORN | |
| C | A/C COMP | |
| D | HEADLAMP | |
| E | DRL | |
| F | - | |

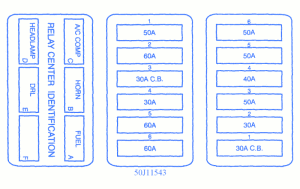

Cadillac ETC 1992 Main Fuse Panel/Board – Fuse Symbol Map
