Cadillac Eldorado 1998 Fuse Box/Block Circuit Breaker Diagram
| SYMBOL | FUSE/RELAY MAP | AMPS |
|---|---|---|
| MINI FUSES | ||
| 1 | F/PMP | 20A |
| 2 | HVAC BLO | 30A |
| 3 | MEM T&T | 10A |
| 4 | SDAR | 5A |
| 5 | DRV MDL | 10A |
| 6 | HTDST LR | 10A |
| 7 | PWR T&T | 30A |
| 8 | SIR | 15A |
| 10 | LP PK R | 15A |
| 11 | VENT SOL | 10A |
| 12 | IGN 1 | 10A |
| 13 | LP PK L | 15A |
| 14 | DIMR | 10A |
| 15 | NAV | 10A |
| 16 | HTDST LF | 10A |
| 17 | EXPORT LST | 15A |
| 18 | RRDR MDL | 10A |
| 19 | STOP LP | 15A |
| 20 | NSBU | 10A |
| 21 | AUDIO | 15A |
| 22 | RAP | 20A |
| 25 | PASSMDL | 10A |
| 26 | BODY | 15A |
| 27 | INT LP | 10A |
| 28 | RR BLO | 10A |
| 29 | IGN SW | 15A |
| 31 | HTDST RF | 10A |
| 32 | CVRTD | 10A |
| 33 | HVAC | 10A |
| 34 | IGN 3 RR | 10A |
| 35 | ABS | 10A |
| 36 | TS1G/HAZ | 15A |
| 37 | HTDST RR | 10A |
| 38 | DIM | 10A |
| MICRO RELAYS | ||
| 39 | F/PMP | |
| 40 | PRK LP | |
| 41 | IGN 1 | |
| 42 | PRK BRK A | |
| 43 | PRK BRK B | |
| 44 | PARK | |
| 45 | REVERSE | |
| 46 | RAP | |
| 47 | RR BLD | |
| 49 | IGN 3 | |
| 50 | F/TNKDR REL | |
| 51 | INT LP | |
| 52 | TRK REL | |
| 53 | FRT CTSY | |
| 54 | RR CTSY | |
| 55 | ELC | |
| 56 | PWR SEAT | 30A |
| 57 | PWR WDO | 30A |
| BREAKERS | ||
| 58 | CIGAR | |
| 69 | RR DEFOG | |
| MINI RELAYS | ||
| 60 | PARK BRK | 20A |
| 61 | RR DEFOG | 40A |
| 62 | EXPORT BRK | 25A |
| 63 | AUDIO AMP | 30A |
| 64 | ELC | 30A |
| 65 | CIGAR | 40A |
| NOT USED | ||
| 9 | - | - |
| 23 | - | - |
| 24 | - | - |
| 30 | - | - |
| 48 | - | - |
| 66 | - | - |
| SPARE FUSES | ||
| 67 | - | |
| 68 | - | |
| 69 | - | |
| 70 | - | |
| 71 | - | |
| 72 | - | |
| 73 | - | |
| 74 | - | |
| 75 | - | |

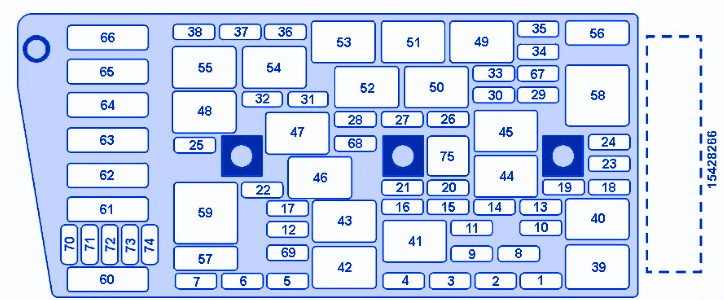

Cadillac Eldorado 1998 Fuse Panel/Board – Fuse Symbol Map
