Cadillac CTSV 2011 Engine Compartment Fuse Box/Block Circuit Breaker Diagram
| MINI FUSESE | USAGE |
|---|---|
| A/C CLTCH | Air Conditioning Clutch |
| ABS | Antilock Braking System (ABS) |
| AFS | Adaptive Forward Lighting System |
| AIRBAG IGN | Airbag Switch |
| AQQS/ISRVM/REAR CAMERA | Air Quality Sensor/Inside Rear View Mirror/Rear View Camera |
| BCM 1 | Body Control Module 1 |
| BCM 2 | Body Control Module 2 |
| BCM 3 | Body Control Module 3 |
| BCM 4 | Body Control Module 4 |
| BCM 5 | Body Control Module 5 |
| BCM6, BCM7 | Body Control Module 6 and 7 |
| DISPLY | Display |
| DRL LT | Left Daytime Running Lamps |
| DRL RT | Right Daytime Running Lamp (DRL) |
| DRL/WSW | Left Daytime Running Lamps/Windshield Washer Pump |
| ECM | Engine Control Module (ECM) |
| ECM/TCM IGN | ECM, Transmission Control Module (TCM), Instrument Panel Cluster (IPC), PASS Key III+ Module |
| EMIS 1 | Emission 1 |
| EMIS 2 | Emission 2 |
| EVEN COILS | Even Coils |
| FRT FOG | Front Fog Lamps |
| HDLP WASH | Headlamp Washer |
| HORN | Horn |
| INTCLR | Intercooler Pump |
| LT HI BEAM | Left High Beam Headlamp |
| LT LO BEAM | Right Low Beam Headlamp |
| LTR | Cigarette Lighter |
| MISC IGN | Ignition |
| NAV MTR | Navigation Motor |
| ODD COILS | Odd Coils |
| PED PRO | Not Used |
| PWR MODING | Passkey Module, Body Control Module |
| RT HI BEAM | Right Hight Beam Headlamps |
| RT LO BEAM | Right Low Beam Headlamp |
| SPARE | Spare |
| STR/WHHL/CNTRL | Steering Wheel Ilumination |
| S/ROOF | Sunroof |
| TCM BATT | Transmission Control Module Battery |
| WPR | Windshield Wiper |

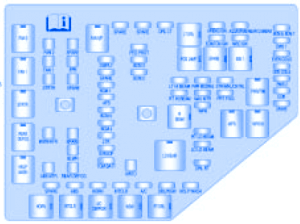

Cadillac CTSV 2011 Engine Compartment Fuse Panel/Board – Fuse Symbol Map
