Cadillac CTSV 2009 Battery Electrical Circuit Wiring Diagram

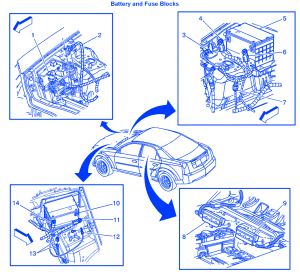

| Symbol | Description |
|---|---|
| 1 | Fuse Block-Underhood |
| 2 | Battery Positive Cable Connection to Fuse Block-Underhood |
| 3 | Ground G105 (LHD) |
| 4 | Battery Positive Cable (LHD) |
| 5 | Battery (LHD) |
| 6 | Battery Negative Cable (LHD) |
| 7 | C103 (LHD) |
| 8 | Fuse Block-Right Rear |
| 9 | Fuse Block-Left Rear |
| 10 | Battery (RHD) |
| 11 | Battery Negative Cable (RHD) |
| 12 | Ground G105 (RHD) |
| 13 | C103 (RHD) |
| 14 | Battery Positive Cable (RHD) |
Cadillac CTSV 2009 Battery Electrical Circuit Symbol Map
