Cadillac Coupe Deville 1995 Interior Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | AMPS | FUSE MAP | |
|---|---|---|---|
| 18 | 20A | CIGAR | Cigarette Lighters, Chime Module |
| 19 | 10A | BODY 2 | Power Mirror Switch, Retained Accessory Power, Trunk/Courtesy Lights, Console Switch, Panel Light Inhibit (Export), Keyless Entry Module |
| 20 | 10A | BODY 1 | Power Door Locks, Door Lock Cylinder Light, Glove Box Light, Footwell Lights, Twilight Sentinel, DRL Module, Headlight Switch |
| 21 | 10A | READ LP | Vanity Mirrors, Garage Door Openers, Front/Rear Header Lights |
| 22 | 10A | L PRK LP | Radio Dimming, Headlight Switch, Instrument Panel Cluster, Left Park/Turn/Marker/Tail/Stoplights |
| 23 | 10A | R PRK LP | Right Park/Turn/Marker/Tail/Stoplights, License Lights, Engine Compartment Light |
| 24 | 10A | RAD(BAT) | Remote Radio Receiver, Radio Control Head |
| 25 | 20A | TRUNK PLD | Trunk Pull-Down, Power Antenne |
| 26 | 20A | ELC | Electronic Level Control |
| 27 | 10A | R HTD SEAT | Passenger Heated Seat |
| 28 | 10A | L HTD SEAT | Driver Heated Seat |

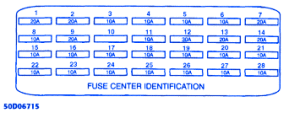

Cadillac Coupe Deville 1995 Interior Fuse Panel/Board – Fuse Symbol Map
