Cadillac Coupe Deville 1993 Fuse Box/Block Circuit Breaker Diagram

Cadillac Coupe Deville 1993 Fuse Box / Block Circuit Breaker Diagram

FUSE SYMBOLAMPSFUSE MAP
1820ACIGARCigarette Lighters, Chime Module
1910ABODY 2Power Mirror Switch, Retained Accessory Power, Trunk/Courtesy Lights, Console Switch, Panel Light Inhibit (Export), Keyless Entry Module
2010ABODY 1Power Door Locks, Door Lock Cylinder Light, Glove Box Light, Footwell Lights, Twilight Sentinel, DRL Module, Headlight Switch
2110AREAD LPVanity Mirrors, Garage Door Openers, Front/Rear Header Lights
2210AL PRK LPRadio Dimming, Headlight Switch, Instrument Panel Cluster, Left Park/Turn/Marker/Tail/Stoplights
2310AR PRK LPRight Park/Turn/Marker/Tail/Stoplights, License Lights, Engine Compartment Light
2410ARAD(BAT)Remote Radio Receiver, Radio Control Head
2520ATRUNK PLDTrunk Pull-Down, Power Antenne
2620AELCElectronic Level Control
2710AR HTD SEATPassenger Heated Seat
2810AL HTD SEATDriver Heated Seat

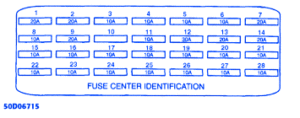

Cadillac Coupe Deville 1993 Fuse Panel / Board – Fuse Symbol Map
