Buick Regal 1994 Fuse Box/Block Circuit Breaker Diagram
| AUTOFUSE | DESCRIPTION |
|---|---|
| RADIO | Radio Receiver, Steering Wheel Radio Switches, Radio Control Interface Module |
| INDIC | Headlight Switch, Diagnostic Energy Reserve Module (DERM), ABS lamp Driver Module, Daytime Running Lamps Module (W/DRL), TCC/Brake switch, Cruise Control Cut-Out Switch, Instrument Cluster, Component Center: Chime Module, Rear Defogger Timer Relay |
| BLMTR | Component Center : A/C HI Blower Relay |
| WIPER | Wiper/Washer Switch |
| T/SIG | Turn Signal Flasher |
| STOP | Component Center : Hazard Flasher, TCC/Brake Switch |
| CTSY | Vanity Mirror Lights, I/P Compartment Light, I/P Courtesy Lights, Trunk Courtesy Lights, I/S Lighted Mirror, Rear Courtesy Lights, Dome/Reading Light, Cigar Lighter, Door Courtesy Lights, Dome Light |
| ARBG1 | Diagnostic Energy Reserve Module (DERM), Arming Sensor |

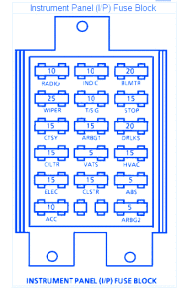

Buick Regal 1994 Fuse Panel/Board – Fuse Symbol Map
