FUSESUSAGE
1Engine Control Module (ECM), Crank
2Fuel Injector Odd
3Fuel Injector Even
4Air Conditoning Clutch
5Air Injection Reactor (AIR) Solenoid
6Oxygen Sensor
7Emission Device
8Tranmission, Ignition 1
9Engine Control Module (ECM), Powertrain Control Module (PCM)
10Climate Control System, Instrument Panel Cluster Ignition 1
11Airbag System
12Horn
13Windshield Wiper
14fog Lamps
15Right High Beam Headlamp
16Left High Beam Headlamp
17Left Low Beam Headlamp
18Right Low Beam Headlamp
19Windshield Washer Pump Motor
20Left Front Comering Lamp
21Right Front Comering Lamp
22Air Pump (J Case)
23Antilock Brake System (ABS)(J Case)
24Starter (J Case)
25Antilock Brake System (ABS) Motor (J Case)
26Cooling Fan 2 (J Case)
27Cooling Fan 1 (J Case)
28Windshield Washer Heater (J Case)

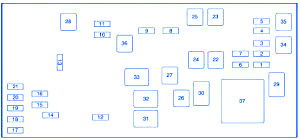

Buick Lucerne 2006 Underhood Fuse Panel/Board – Fuse Symbol Map
