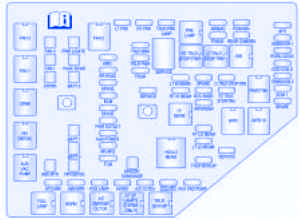

Buick Enclave 2010 Fuse Box/Block Circuit Breaker Diagram
| Fuses | Usage |
|---|---|
| A/C CLUTCH | Air Conditioning Clutch |
| ABS MTR | Antilock Braking System (ABS) Motor |
| AFS | Adaptive Forward Lighting System |
| HVAC BLWR | Heating, Ventilation and Air Conditioning Blower |
| LT HI BEAM | Left High Beam Headlamp |
| LT LO BEAM | Left Low Beam Headlamp |
| LT PRK | Left Parking Lamps |
| LT TRLTR STOP TRN | Trailer Left Stoplamp an Turn Signal |
| ODD COLIS | Odd Injector Coils |
| PCM IGN | Powertrain Control Module Ignition |
| PWR L/GATE | Power Liftgate |
| PWR OUTLET | Power Outlet |
| AIRBAG | Airbag System |
| AUX POWER | Auxiliary Power |
| AUX VAC PUMP | Auxiliary Vacuum Pump |
| AWD | All Wheel Drive System |
| REAR CAMERA | Rear Camera |
| RR APO | Rear Accessory Power Outlet |
| RR DEFO | Rear Defogger |
| RR HVAC | Rear Climate Control System |
| RT HI BEAM | Right High Beam Headlamp |
| RT LO BEAM | Right Low Beam Headlamp |
| RT PRK | Right Parking Lamp |
| RT TRLR STOP/TRN | Trailer Right stoplamp and Turn Signal |
| RVC SNSR | Regulated Voltage Control Sensor |
| BATT 1 | Battery 1 |
| BATT 2 | Battery 2 |
| BATT 3 | Battery 3 |
| ECM | Engine Control Module |
| ECM 1 | Engine Control Module 1 |
| EMISSION 1 | Emission 1 |
| EMISSION 2 | Emission 2 |
| EVEN COILS | Event Injectors Coils |
| FAN 1 | Cooling Fan 1 |
| FAN 2 | Cooling Fan 2 |
| FOG LAMP | Fog Lamps |
| F SCM | Fuel System Control Module |
| HORN | Horn |
| HTD MIR | Heated Outside Rearview Mirror |
| A/ROOF/ SUNSHADE | Sunroof |
| SERVIE | Service Repair |
| SPARE | Spare |
| STOP LAMPS (China Only) | Stop Lamps (China Only) |
| STRTR | Starter |
| TCM | Transmission Control Module |
| TRANS | Transmission |
| TRLTR BCK/UP | Trailer back Up Lamps |
| TRL BRK | Trailer Brake |
| TRLR PRK LAMP | Trailer Parking Lamps |
| TRLR PWR | Trailer Power |
| WPR/WSW | Windshield Wiper/Washer |
Buick Enclave 2010 Fuse Panel/Board – Fuse Symbol Map
