BMW Touring 2002 Fuse Box/Block Circuit Breaker Diagram

BMW Touring 2002 Fuse Box/Block Circuit Breaker Diagram



Fuse No.AmpsLoad Unit
15ARear, Parking and Side Light-Left
25ARear, Parking and Side Light-Right, License Plate Lights, Instrument Lighting, Rear Fog Warning Light, Fog Lamp Relay
38ALow Beam Headlight-Left
48ALow Beam Headlight-Right
55ATurn Indicator Flasher-Left
65ATurn Indicator Flasher-Right
716ACigar Lighter
88AClock, Interior Light, Hazard Warning Flasher, Trailling Turn Indicators
916AHeater blower
1016AHeated Rear Window
118AFuel Pump, Automatic Choke, Fuel Gauge, Coolant Thermometer, Oil Pressure Telltale, Revolution Counter, Handbrake Telltale, Cold Start and Fuel Level telltale
1216AStop Lights, Turn Indicator Lights, Horn Relay, Wiper Motor, Washer, Reversing Lights

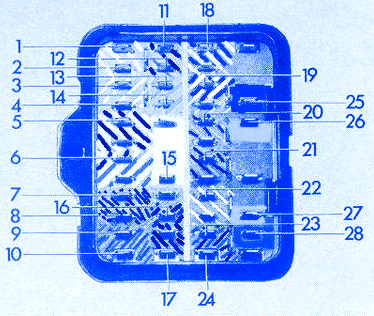

BMW Touring 2002 Fuse Panel/Board – Fuse Symbol Map
