BMW Touring 1978 Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Amps | Load Unit |
|---|---|---|
| 1 | 5A | Rear, Parking and Side Light-Left |
| 2 | 5A | Rear, Parking and Side Light-Right, License Plate Lights, Instrument Lighting, Rear Fog Warning Light, Fog Lamp Relay |
| 3 | 8A | Low Beam Headlight-Left |
| 4 | 8A | Low Beam Headlight-Right |
| 5 | 5A | Turn Indicator Flasher-Left |
| 6 | 5A | Turn Indicator Flasher-Right |
| 7 | 16A | Cigar Lighter |
| 8 | 8A | Clock, Interior Light, Hazard Warning Flasher, Trailling Turn Indicators |
| 9 | 16A | Heater blower |
| 10 | 16A | Heated Rear Window |
| 11 | 8A | Fuel Pump, Automatic Choke, Fuel Gauge, Coolant Thermometer, Oil Pressure Telltale, Revolution Counter, Handbrake Telltale, Cold Start and Fuel Level telltale |
| 12 | 16A | Stop Lights, Turn Indicator Lights, Horn Relay, Wiper Motor, Washer, Reversing Lights |

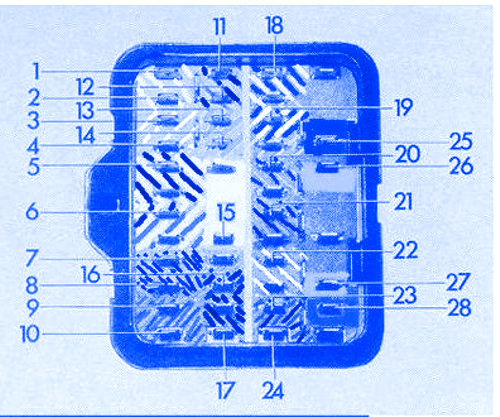

BMW Touring 1978 Fuse Panel/Board – Fuse Symbol Map
