BMW R1100RS 1994 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | Color | Amps | Description |
|---|---|---|---|
| 1 + | Blue | 15A | Brake Light and Both Brake Switches, Tacho, Fuel Lamp Damping Unit, 5 Warning Lamps (Neutral, Oil Fuel, Charge and ABS Bottom) |
| 2 # | Blue | 15A | Tail and Side Lights |
| 3 * | Blue | 15A | RID, Accessory Socket, Turn/Hazard, Alarm Connector |
| 4 & | Blue | 15A | Turn/Hazard, Horn, Relay 5 |
| 5 * | Blue | 15A | Motronic, Relay 7 |
| 6 * | Blue | 15A | Fuel Pump, Injectors, Timing Valve, Lambda Sensor, Relay 6 |
| 7 + | Red | 4A | Heated Grips |
| 8 | - | - | Empty Slot |
| 9 | Red | 4A | Spare |
| 10 | Blue | 15A | Spare |
| * | Alwys Hot (Connected to Battery) | ||
| + | Hot When Ignitioin On | ||
| & | Hot When Ignition ON and Starter Not Pressed | ||
| # | Hot When Ignition ON and Starter Not Pressed or Ignition in Park | ||
| Unfused Circuits | |||
| - | Ignition Circuit | ||
| - | Relays 3,4,8 | ||
| - | RID, Speedo and Tacho Backlights | ||
| - | Starter Motor, Clutc and Neutral Switches | ||
| - | Headlights Including High beam Indicator | ||
| - | ABS Circuitry Except Bottom Warning Lamp | ||

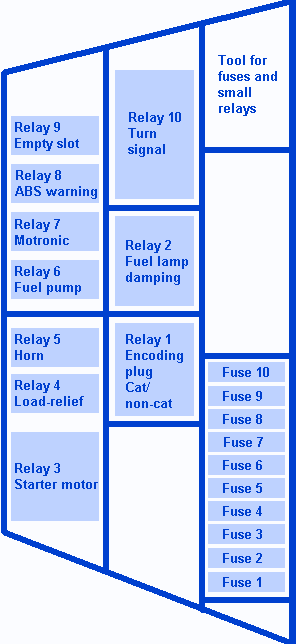

BMW R1100RS 1994 Fuse Panel/Board – Fuse Symbol Map
