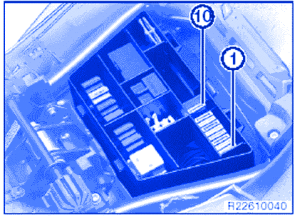

BMW R-1150 RT 2003 Fuse Box/Block Circuit Breaker Diagram

BMW R-1150 RT 2003 Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTIONAMPS
1Instrument Cluster (telltale lights, Revolution Counter), Indicator Damping, Windscreen Adjuster4A
2Parking Light, Tail Light4A
3Windscreen Adjuster, Power Socket 1 and 2, FID, OE Socket, Radio15A
4Horn7.5A
5Motronic Control Unit, Motronic Relay, Diagnosis Connector10A
6Fuel-Pump Relay (Injection Valves, Cycles Valves, Oxygen Sensor)10A
7Heated Handlebar Grip4A
8Radio4A
9Not Used-
10Fog Lamp Relay15A

BMW R-1150 RT 2003 Fuse Panel/Board – Fuse Symbol Map
