BMW M6 2008 Main Fuse Box/Block Circuit Breaker Diagram
| Equipment | fuse |
|---|---|
| Airbag | 13,45 |
| ACS/DSC | 7,24,42,43 |
| CD-Changer | 48 |
| Central Locking System | 11,30 |
| Cigarette Lighter | 5 |
| Cigarette Lighter Australia | 5,8 |
| Clutch Switch | 14 |
| Cruise Control | 28 |
| DMTL (Fuel Leakage Diagnosis) | 33 |
| EGS Transmission Control | 9 |
| Electric Seat Heating | 12,16 |
| Electrical Circuits | 12 |
| Electrics Box Fan | 33 |
| Electrodhromic Inside and Outside Morrors | 25 |
| EPS()Electr, Steering) | 22 |
| EWS (Electronic Immobiliser) | 10,12,54 |
| Fold-in Mirrors | 27 |
| Front Fog Lights | 36 |
| Fuel Pump | 19,33 |
| Headlight Cleaning System | 40 |
| -heatedBlower | 57 |
| Heated Rear Window | 20,25 |
| Heated Spray Nozzles | 21 |
| Heater/Air Conditioning | 22,39 |
| Horn | 14,37 |
| Ignition Starter Switch | 54,58 |
| Instrument Cluster | 12,23,24 |
| Interior and Luggage Comp Lights 10,12,26 | |
| Lighting Circuits(Low-Beam Headlights, high-Beam Headlights, Brake Lights, Side Lights, Turn Indicators, Hazard Warning Flasher, Rear Lights, LWR) | 14,23,59,60 |
| Mirror Adjustment | 8 |
| Mirror Heating Driver, Passenger | 8,21 |
| Multi-function Steering Wheel | 28 |
| Navigation, TV | 49 |
| OBD II Power Socket | 9,24 |
| PDC (Park Distance Control | 8 |
| Power Soft Top | 12,31,55 |
| Radio | 47,50 |
| Rain Sensor | 28 |
| Reversing Lights | 6 |
| Seat Adjustment Left | 29 |
| Seat Adjustment Right | 15 |
| Secondary Air Pump | 33,56 |
| Shifting Gate Illumination US | 24 |
| Sport Switch | 7 |
| SMG Control | 9,32 |
| Telephone | 49 |
| Thiefproofing System | 30 |
| Window Lift | 41,46 |
| Wipe-Wash System | 38 |

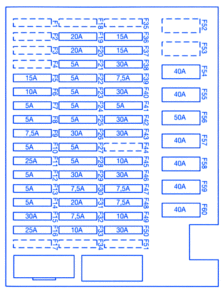

BMW M6 2008 Main Fuse Panel/Board – Fuse Symbol Map
