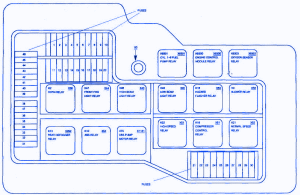

BMW E36 150K 1993 Power Distribution Fuse Box/Block Circuit Breaker Diagram

BMW E36 150K 1993 Power Distribution Fuse Box/Block Circuit Breaker Diagram



SYMBOLDESCRIPTION
K2HORN RELAY
K47FRONT FOG LIGHT RELAY
K46HIGH BEAM LIGHT RELAY
K13REAR DEFOGGER RELAY
K10ABS RELAY
K75ABS PUMP MOTOR RELAY
K6301CLY 1-6FUEL PUMP RELAY
K6300ENGINE CONTROLMODULE RELAY
K6303OXYGEN SENSOR RELAY
K45LOW BEAM LIGHT RELAY
K16HAZARD FLASHER RELAY
K4BLOWER RELAY
K22HIGH SPEED RELAY
K19COMPRESSOR CONTROL RELAY
K21NORMAL SPEED RELAY

BMW E36 150K 1993 Power Distribution Fuse Panel/Board – Fuse Symbol Map
