BMW E-46 2003 Main Fuse Box/Block Circuit Breaker Diagram
| FUSE SYMBOL | FUSE MAP |
|---|---|
| 12.33.42.53.56 | ABS ASC |
| 65 | Adjusment Driver Seat |
| 11 | Airbag |
| 28.62.63 | Air Conditioner |
| 64 | Automatic Gearbox Diesel |
| 28.50 | Blower |
| 9 | Brake Light |
| 49.52.60 | Central Locking System |
| 49.52.58.60 | Central Locking System (Only Touring) |
| 47 | Cigarette Lighter |
| 26.47 | Cigarette Lighter (Australia) |
| 12.33.40.42.53.56.61 | DSC |
| 12.33.35.40.42.53 | DSC 4-Wheel Drive |
| 37 | Electric Fan |
| 12.42 | Electric Seat Heating |
| 27.29.30 | Engine Control |
| 22.29.30 | Engine Control (Only M3) |
| 57 | Folding Outside Mirror |
| 38 | Front Fog Light |
| 54 | Fuel Pump |
| 26 | Garage Door Opener |
| 52 | Glove Box Light |
| 52 | Hand Lamp |
| 51 | HeadLight Cleaning |
| 25 | Heated Outside Mirror. Passanger |
| 68 | Heated Rear Window |
| 7.68 | Heated Rear Window (Only Cabri) |
| 25 | Heated Spray Nozzles |
| 23.28.62 | Heater |
| 71 | Hinged Window (Only Coupe) |
| 5.55 | Horn |
| 14.67 | Immobilizer |
| 10.34.43 | Instrument Cluster |

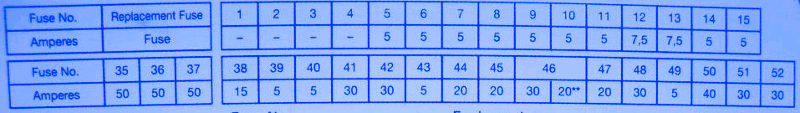

BMW E-46 2003 Main Fuse Panel/Board – Fuse Symbol Map
