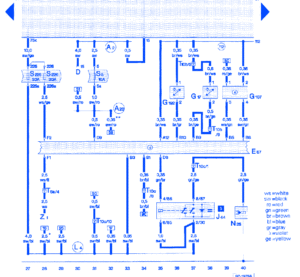

Audi A6 2001 Wiring Electrical Circuit Wiring Diagram
| SYMBOL | DESCRIPTION |
|---|---|
| D | Ignition/Starter Switch |
| E 87 | A/C Control Head |
| G 17 | Outside Air Temperature Sensor |
| G 107 | Sunlight For Outlet Temperature, Floor Outlet |
| J 44 | A/C Clutch Relay |
| N 25 | A/C Clutch |
| S 5 | Fuse |
| S 225 | Fuse |
| S 226 | Fuse |
| T 6 a | Connector 6 Pin, Blue Connector station A Pillar, Left |
| T 10 b | Connector 10 Pin, Red, Connector station A Pillar, Left |
| T 10 c | Connector 10 Pin, Grey, Connector Station A Pillar, Left |
| Z 1 | Heated Rear Window |
| 112 | Ground Connector 2, In A/C Wiring Harness |
| A2 | Plus Connection (15), In Instrument Panel Wiring Harness |
| A20 | Wire Connection (15a), In Instrument Panel Wiring Harness |
| L4 | Wire Connection (75), In A/C Wiring Harness |
| * | Vehicles With Sunroof With Solar Cells |
| ** | Vehicles With Outside Air Temperature Display |
Audi A6 2001 Wiring Electrical Circuit Symbol Map
