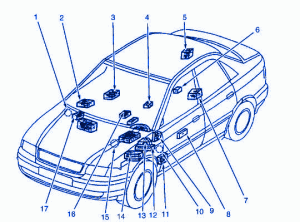

Audi A4 Quatro 2800 1998 Interior Fuse Box/Block Circuit Breaker Diagram
| Symbol | Description |
|---|---|
| 1 | G43 |
| 2 | Cruise Control Control Module |
| 3 | Transmission Control Module |
| 4 | Data Link Connector |
| 5 | Central Locking/Interior Lamp Delay/Anti-Theft Alarm Control Module |
| 6 | Ultrasonic Interior Monitor Control Module |
| 7 | ABS/Electronic Differential Lock Control Module |
| 8 | Heated Lock Cylinder Control Module |
| 9 | Fuse Assembly |
| 10 | G32 |
| 11 | Left Connector Station |
| 12 | Fuse Relay Panel |
| 13 | Relay Panel |
| 14 | Auxiliary Relay Panel |
| 15 | G12 |
| 16 | Airbag Control Module |
| 17 | Right Connector Station |
Audi A4 Quatro 2800 1998 Interior Fuse Panel/Board – Fuse Symbol Map
