Aprilia Tuono V4R 2012 Fuse Box/Block Circuit Breaker Diagram
| FUSE NO. | AMPERE | CIRCUIT PROTECTED |
|---|---|---|
| A | 5A | From Key to : Light Relay, Stop, Horn, Parking Light |
| B | 5A | Froom Key to : Turn Indicators, Intrument Panel |
| C | 5A | From Key to : Key Operated Positive to E.C.U |
| D | 15A | From Battery to : Speed Sensor, Fuel Pump, Relay Starter, Oxygen Sensor |
| E | 15A | From Battery to : Fan Relay, Coil, Injectors, Air Flaps, Camshaf Position Sensor |
| F | 20A | From Ignition Switch to : High Beam, Low Beam |

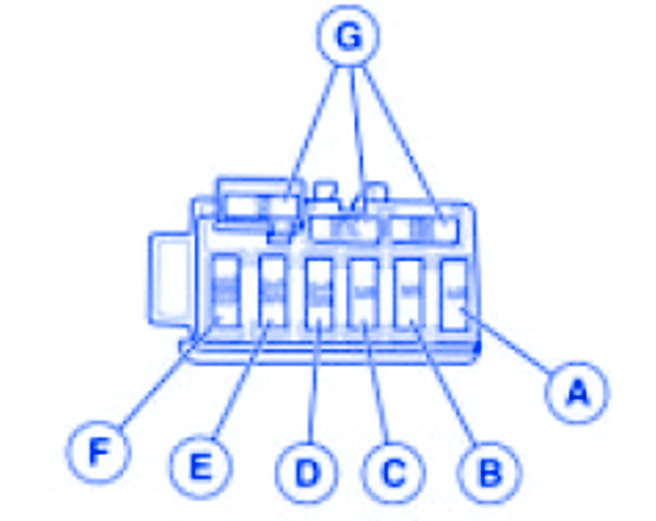

Aprilia Tuono V4R 2012 Fuse Panel/Board – Fuse Symbol Map
