Aprilia RXV 2003 Fuse Box/Block Circuit Breaker Diagram
| Fuse Symbol | AMP | Fuse Map |
|---|---|---|
| S/A FUSES | ||
| 1 | 80A | Main |
| 2 | 30A | IG KEY1 |
| 3 | 30A | BLOWER |
| 4 | 20A | C/FAN |
| 5 | 30A | ABSI |
| 6 | - | - |
| 7 | 20A | COND. FAN |
| MINI FUSES | ||
| 8 | 15A | HEAD-HI |
| 9 | 15A | HAED-LOW |
| 10 | 10A | EMS |
| 11 | 15A | INJECTOR |
| 12 | 10A | F/PUMP |
| 13 | 10A | ECU |
| 14 | 10A | RELAY |
| 15 | 25A | MAIN RELAY |
| 16 | 15A | S/ROOF |
| 17 | 25A | HEAD |
| 18 | - | - |
| 19 | - | - |
| 20 | 10A | HLLD |
| 21 | 25A | IG KEY2 |
| 22 | 15A | TNS |
| 23 | 10A | HORN |
| 24 | 20A | RR DEF |
| 25 | 20A | ABS2 |
| 26 | 30A | P/WIN |
| 27 | 30A | BTN |
| 28 | 25A | D/LOCK |
| 29 | 15A | IG COIL |
| 30 | MEMORY ROOM | |
| MINI RELAYS | ||
| 31 | BLOWER | |
| 32 | P/WIN | |
| MICRO RELAYS | ||
| 33 | COND FAN | |
| 34 | TNS | |
| 35 | MAIN | |
| 36 | H/LAMP | |
| 37 | C/FAN | |
| 38 | HORN | |
| 39 | F/PUMP | |
| 40 | RR DEF | |
| 41 | A/CON | |

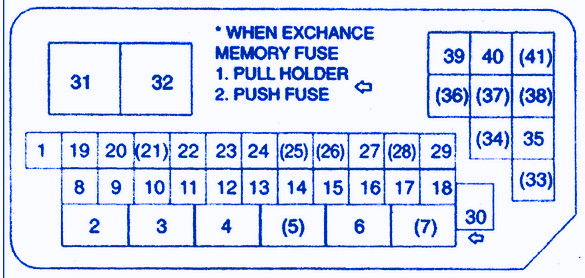

Aprilia RXV 2003 Fuse Panel/Board – Fuse Symbol Map
