Alfa Romeo Alfetta Mini 1982 Fuse Box/Block Circuit Breaker Diagram
| Fuse No. | Circuit Protected | Rating (A) |
|---|---|---|
| 1 | Haeted Rear Screen | 16A |
| 2 | Air Conditioner/Heater Blower | 16A |
| 3 | Hazard Warning Flasher and Air Conditioner Fan | 16A |
| 4 | Stop Lamps | 8A |
| 5 | Courtesy Lamp, Clock, Power Operated Radio Aerial, Warning Buzzer | 8A |
| 6 | Windscreen Wiper, Cigar Lighter, Reversing Lamps, Glvebox Lamp | 8A |
| 7 | Instrument Air Conditioner, Radiator Fan, Heated Rear Window Relay | 8A |
| 8 | Directions Indicator | 8A |
| 9 | RH Front Parking Lamp, LH Tail Lamps Engine Compartment Lamp, LH Rear Number Plate Lamp | 8A |
| 10 | LH Front Parking Lamp, RH Tail Lamps Engine Compartment Lamp, RH Rear Number Plate Lamp | 8A |
| 11 | Left Hand Headlamp (Low Beam) | 8A |
| 12 | Right Hand Headlamp (Low Beam) and Rear Foglamp | 8A |
| 13 | Left Hand Headlamp (Main Beam) | 8A |
| 14 | Right Hand Headlamp (Main Beam) | 8A |

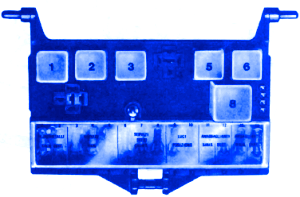

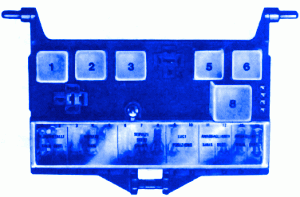

Alfa Romeo Alfetta Mini 1982 Fuse Panel/Board – Fuse Symbol Map
