Alfa Romeo 147 FL 2010 Battery Fuse Box / Block Circuit Breaker Diagram
| DESCRIPTION | LOCATION | FUSE | RATING (A) |
|---|---|---|---|
| Main-Beam Headlight | Battery | F2 | 15A |
| Foglight | Battery | F30 | 15A |
| Climate Control Compressor | Battery | F1 | 7.5A |
| Climate Control Compressor | Battery | F1 | 7.5A |
| Selespeed transmissio | Battery | F11 | 15A |
| Headlight washer | Battery | F5 | 20A |
| Primary Services (Electronic Injection) | Battery | F8 | 7.5A |
| Secondary Services (Electronic Injection) | Battery | F9 | 15A |
| Electronic Injection Control Unit +30 | Battery | F6 | 7.5A |
| Fuel Pump | Battery | F4 | 15A |
| Electronic Injection System | Battery | F11 | 7.5A |
| Petrol/Ignition Coil Injectors | Battery | F10 | 15A |
| Services | Battery | F12 | 7.5A |
| Services | Battery | F12 | 7.5A |

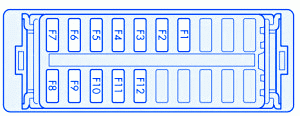

Alfa Romeo 147 FL 2010 Battery Fuse Panel / Board – Fuse Symbol Map
