Abarth Grande Punto 2006 Engine Fuse Box/Block Circuit Breaker Diagram
| USERS | FUSES | AMPERE RATING (A) |
|---|---|---|
| Power + Brake System Battery (Solenoid Valve | 53 | 30A |
| Left Dipped Beam Power, Headlight Aiming Device | 38 | 10A |
| Right Dipped Beam Power | 39 | 10A |
| Left Main Beam Power | 40 | 10A |
| Right Main Beam Power | 41 | 10A |
| Power + Key Engine Control Unit | 47 | 7.5A |
| Power + Key Passengers Compartment Cooling Unit, Electronic Control Unit For drivers Window, Power Door Mirrors, Reversing Light (1.48V Dualogig Version) | 48 | 7.5A |
| Free | 46 | - |
| Power For Engine Diagnostic System Primary Loads (Ignition Coils, Injectors, Engine Control Unit - Multijet Version) | 30 | 15A |
| Power For Engine Control Unit (1.4 Engine) | 33 | 10A |
| Power For Fuel Motor Pump | 51 | 15A |
| Power For front Fog Lights | 25 | 15A |
| Power For Headlight Washer Motor Pump | 27 | 30A |
| Power For Single Tone Horn | 37 | 15A |
| Power For Conditioner Compressor | 42 | 7.5A |
| Power For Starter Motor (Magnet + 50) | 49 | 30A |
| Power For Slider Solenoid Valve (1.4 16V Engine) | 29 | 7.5A |
| Power + battery Internal Cooling Control Unit | 54 | 7.5A |
| Power + Battery Engine Control Unit | 32 | 7.5A |
| Power For Passenger Compartment Current Outlet | 31 | 20A |
| Power + Key reversing Light, Glow Plug Control Unit, Flow Meter, Water In Diesel Fuel sensor | 45 | 10A |
| Power For Electric Door Mirror Defrosting Devices | 43 | 10A |
| Power For Front Passenger Power Window Motor | 26 | 10A |
| Power For Driver Power Window Motor | 28 | 20A |
| Free | 52 | - |
| Free | 44 | - |

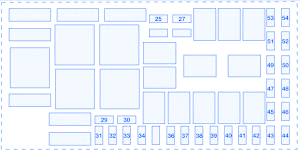

Abarth Grande Punto 2006 Engine Fuse Panel/Board – Fuse Symbol Map
