Abarth Grande Punto 2005 Interior Fuse Box/Block Circuit Breaker Diagram
| USERS | FUSE | AMPERE RATING (A) |
|---|---|---|
| Free | 01 | - |
| Power + Battery Instrument Panel, EOBD Diagnostic Socket | 02 | 10A |
| Power + Battery Sound System, Control Unit For Hands Free Kit With Voice Recognition and Bluetooth Technology, Control Unit For Hi-Fi Audio System | 03 | 15A |
| Power + Battery Ignition Switch | 04 | 7.5A |
| Power For Windscreen/Rear Window Washer Motor Pump | 05 | 20A |
| Power For Tailgate Actuator | 06 | 15A |
| Power For Door lock Motor Actuators, Dead Lock Motor Actuators | 07 | 20A |
| Free | 08 | - |
| Power For Front Ceiling Light, Rear Ceiling Light, Boot Light, Puddle Light, Courtesy Lights | 09 | 10A |
| Power + Key Electric Power Steering System Control Unit | 10 | 7.5A |
| Power + Key Instrument Panel, Switch On Brake Pedal (Brake Light Control Circuit), Switch On Clutch Pedal | 11 | 7.5A |
| Power + Key Brake System Control Unit, VDC System, Switch On Brake Pedal | 12 | 7.5A |
| Power + Key Air Bag System Control Unit | 13 | 10A |
| Power + Key Side Button Panel Light, Steering Wheel Control Lights, Central Button Panel (ASR Control and Led) | 14 | 7.5A |
| Power + key Button Panel Light On Ceiling light, front Seat warning Button Panel (System Control and Led), Rain sensor | 14 | 7.5A |
| Power + Key Power Sunroof Control Unit, Tyre Pressure Sensor Control Unit, Control Unit For Hands Free Kit With Voice Recognition and Bluetooth Technology, Parking Sensor System Control Unit | 14 | 7.5A |

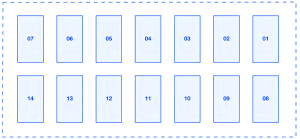

Abarth Grande Punto 2005 Interior Fuse Panel/Board – Fuse Symbol Map
