Abarth 500 2007 Interior Fuse Box/Block Circuit Breaker Diagram
| FUSE MAP | FUSE | AMPERE RATING (A) |
|---|---|---|
| Supply of Right Low Beam | F12 | 7.5A |
| Supply of Left Low Beam and headlamp Direction Adjustment Control Unit | F13 | 7.5A |
| Engine Compartment Shunt Control Unit Switch | F31 | 5A |
| Lights of front and Rear Ceiling Lights, Trunk and Door Courtesy Lights | F32 | 7.5A |
| Diagnostic Socket, car Radio, Climate Control System, EOBD | F36 | 10A |
| Stop Lights Switch, Instrument panel Mode | F37 | 5A |
| Door Central Locking | F38 | 20A |
| Windshield/Rear Windshield Washer Pump | F43 | 15A |
| Driver Side power Window | F48 | 20A |
| Backlight Switches, Electric Mirrors | F49 | 5A |
| Air bag Node | F50 | 7.5A |
| Car Radio Switch, Convergence, Climate Control System, Stop Lights, Clutch | F51 | 7.5A |
| Instrument Panel Node | F53 | 5A |

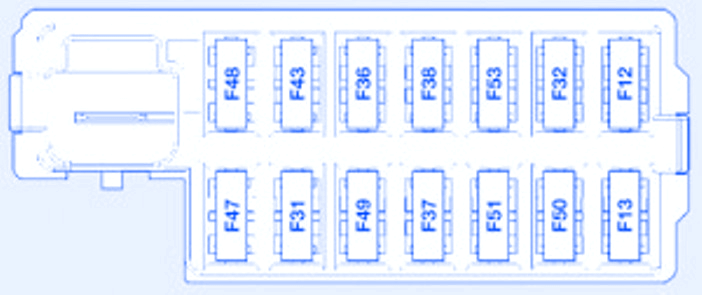

Abarth 500 2007 Interior Fuse Panel/Board – Fuse Symbol Map
