Mercy E190 1992 Main Fuse Box/Block Circuit Breaker Diagram
| RELAY CODE | RELAY USE | |||
|---|---|---|---|---|
| A | Not Used | |||
| B | F13 Auxiliary Fuse Holder (Power Seat) | |||
| C | K10 Auxiliary Fan High Speed Relay | |||
| D | K5 Power Seat Relay | |||
| R1 | N10 Combination Relay (Rear Defogger Timer, Wiper/Washer, Hazard/Turn Signal Flasher) | |||
| R2 | K4 Power Window Relay | |||
| R3 | - | |||
| R4 | Not Used | |||

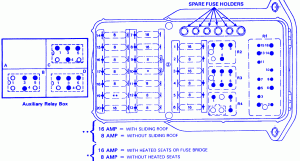

Mercy E190 1992 Main Fuse Panel/Board – Fuse Symbol Map
